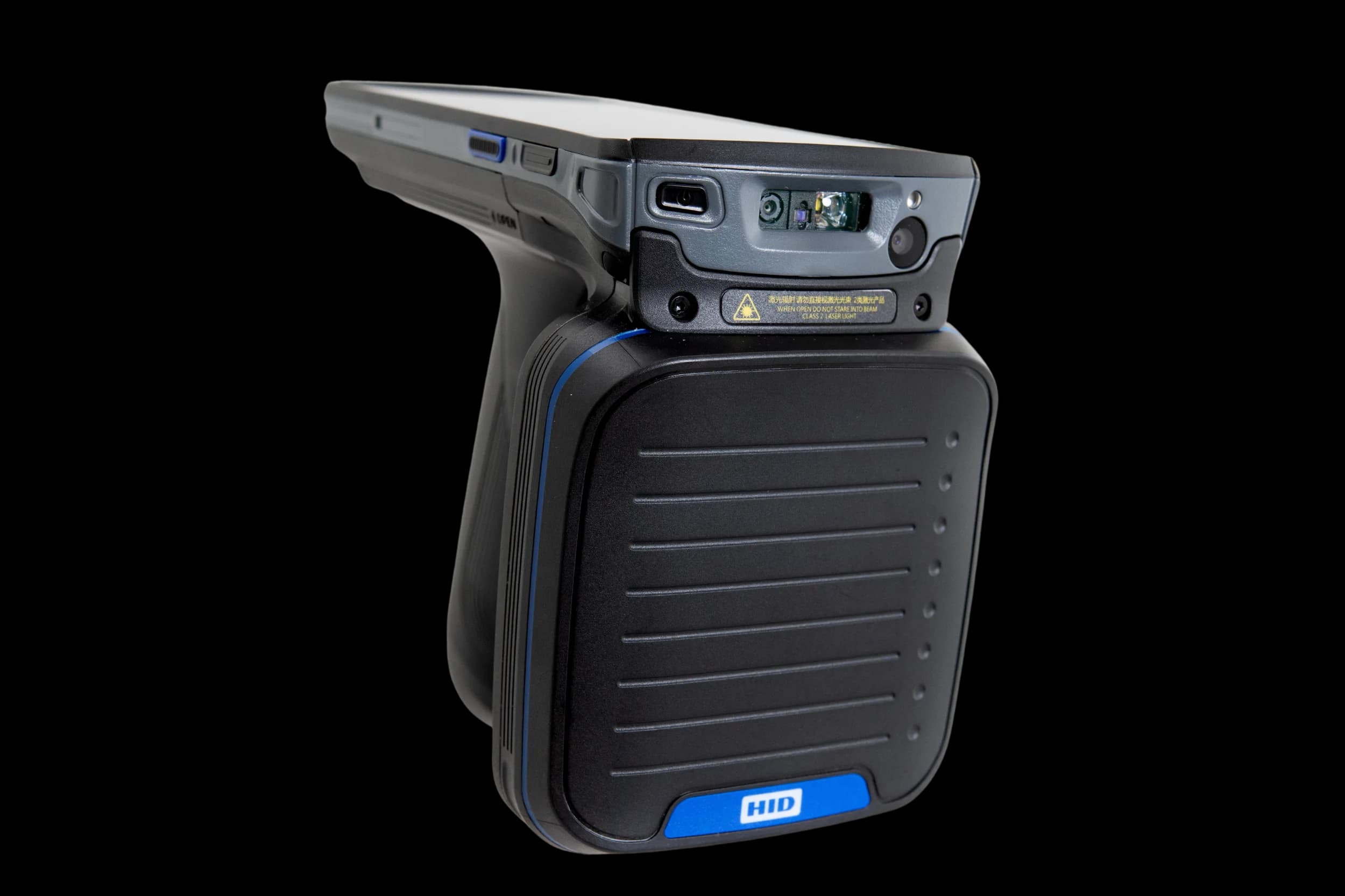

XR2
Innovative Multifunctional UHF RFID Reader for Supply Chain Operations
The Janam XR2 is the ultimate multifunctional UHF RFID reader, designed for the dynamic needs of the supply chain, manufacturing, and logistics industries. Developed for real-time tracking and superior visibility, the XR2 redefines inventory management and asset tracking with its unparalleled speed and accuracy.
This next-generation RFID reader combines advanced RAIN RFID technology with a sleek and intuitive design to help businesses of all types and sizes optimize their operations. Equipped with the industry-leading Impinj E710 reader chip, the XR2 is a cost-effective, high-quality application that doesn't compromise on functionality. Capable of scanning over 1,300 Class 1 Gen 2 EPC tags per second at a distance of up to 18 meters, the XR2 offers new levels of efficiency in asset management and inventory control, significantly reducing the time and labor required for businesses of all types and sizes. Furthermore, the integration of an advanced Honeywell 1D/2D imager provides high-throughput capture of even the most difficult-to-read barcodes.
The XR2 offers enhanced connectivity options through JanamConnect®, an optional multi-carrier SIM card application that gives businesses access to the best-performing cellular networks worldwide. Integrated GPS functionality not only provides precise location data but also enhances asset tracking and management. By combining accurate tag location information with RFID data, the XR2 allows businesses to gain essential insights into asset logistics, optimize operations, and significantly increase efficiency across the modern supply chain.
- High-speed tag capture, delivering greater productivity in inventory management and operational processes;
- Excellent performance for asset control and tracking across large operational areas;
- Efficient capture of hard-to-read barcodes through advanced imaging technology;
- Enhanced visibility of operations and material flow throughout the supply chain;
- Reduced time and operational effort required for activities and processes;
- Integrated geolocation capabilities for monitoring and tracking field assets;
- Ergonomic and intuitive design for continuous use in corporate environments;
- Suitable solution for companies of different sizes seeking automation and operational efficiency;
- Platform designed for asset management, inventory control, warehousing, and logistics applications.
Physical Characteristics
| Vibration and Drop | Several 1.2 m (4 ft) concrete level differences |
| Dimensions | 5,64 pol. x 6,65 pol. x 3,56 pol. / 143,3 mm x 169 mm x 90,5 mm |
| Weight | 23,9 oz./678 g |
| Protection | IP67 |
Technical Details
| Supported Protocols | EPC Classe 1 Gen2 | ISO-18000-63 |
| Transponder | RAIN RFID/ UHF |
| Max Read Distance | More than 1,300 tags per second |
| Operating Frequency | 865-868 MHz | 902-928 MHz |
| Processor | Qualcomm octa-core de 2,45 GHz |
| OS | Android 13 with Google Mobile Services (upgradable to Android 15) |
| Camera | 5 MP front camera and 13 MP top camera with flash |
| Display | 5.7-inch color display (720 × 1440) |
| Expansion | User-accessible microSD card slot with support for up to 512 GB using the exFAT file system |
| RFID Chip | Impinj E710 |
| Power | Rechargeable 9,000 mAh 3.7 V lithium-ion battery |
| Electrical Protection | UL 60950-1, CAN/CSA C22.2 No. 60950-1, IEC 60950-1, EN 60950-1 |
| Memory | 4 GB/64 GB |
| Operating Temperature | -4º a 140º F / -20º a 60º C |
| Storage Temperature | -40º a 158º F / -40º a 70º C |
| Humidity | Non-condensing, 95% |
