RFID Readers

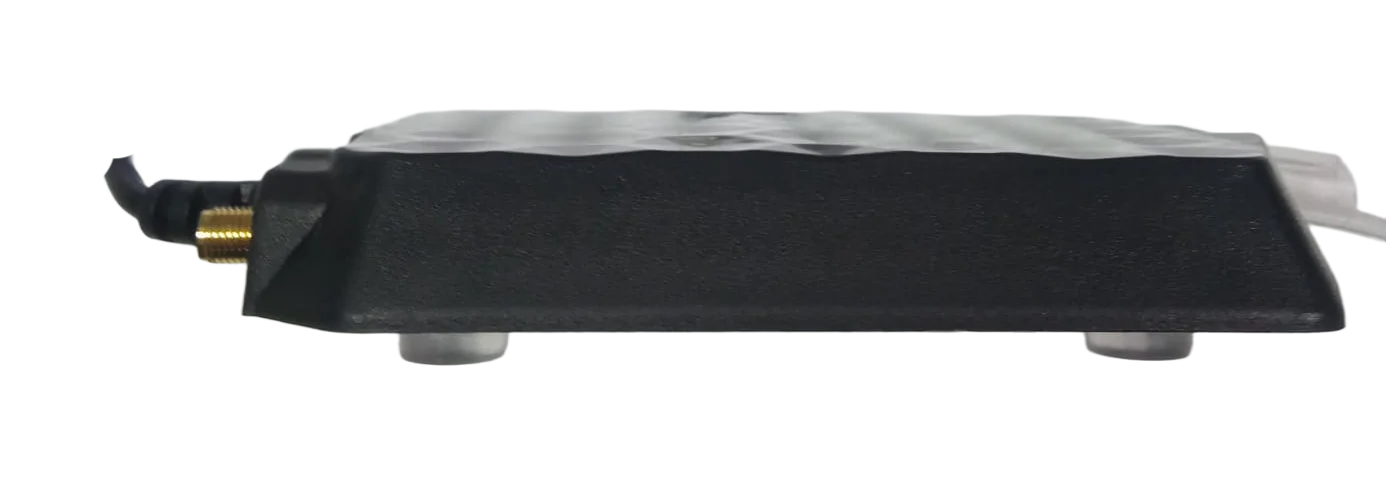

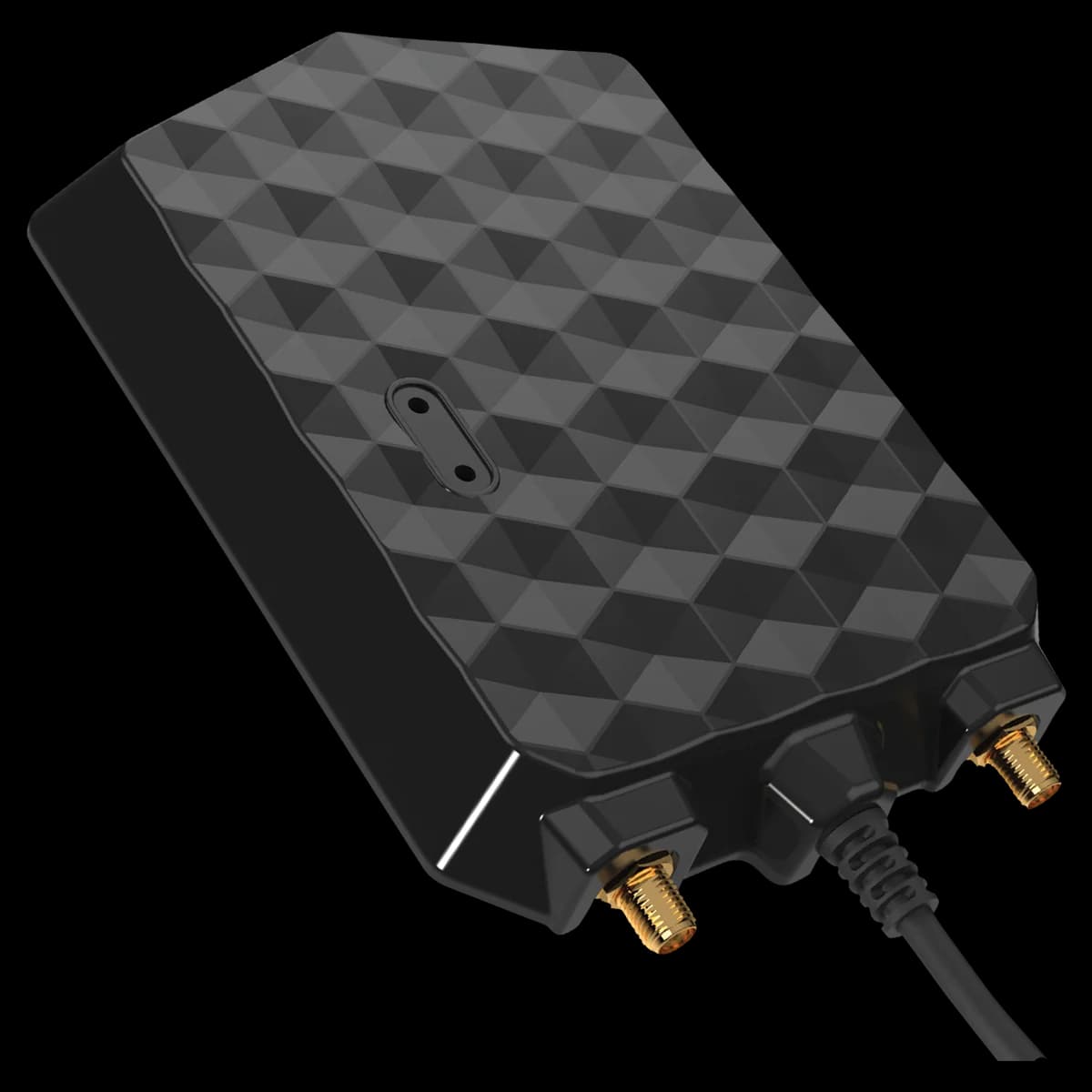

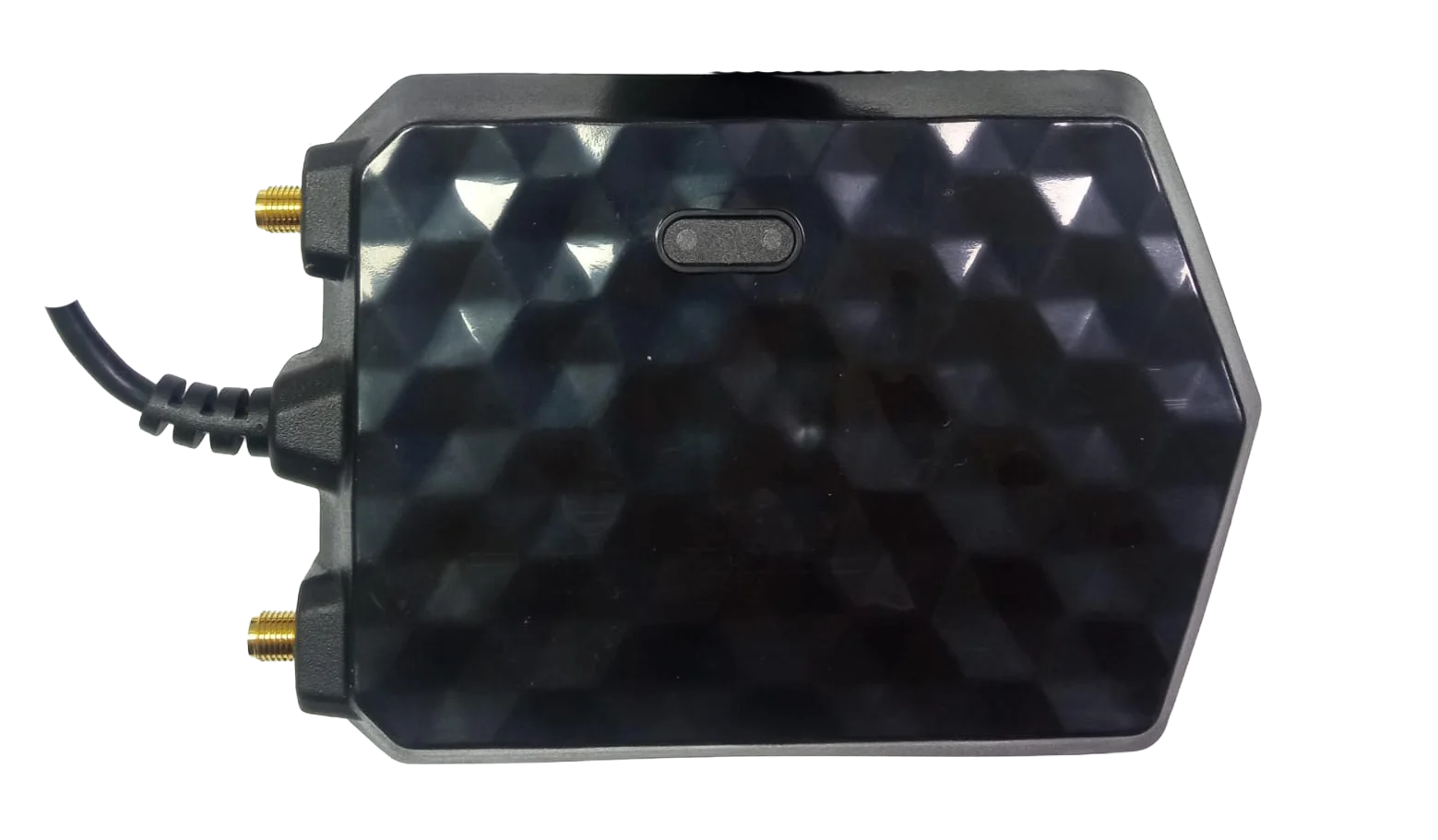

AcuPad 50 MUX UHF reader
The AcuPad-50 Mux is a compact and efficient UHF RFID reader, designed for professional applications. It features two SMA outputs for external antennas, ensuring flexible installation, stable performance, and easy system integration.
The AcuPad-50 MUX is a compact, efficient and flexible UHF RFID reader designed for applications that require simple integration, reliable performance and adaptability to different environments.
With two RF ports for external antennas, the device allows the reading area to be configured according to each application. It is suitable for self-checkout, POS, laundry identification, logistics, product control, industrial equipment control, tag read/write stations and small RFID portals.
Communication and power are provided directly through USB, making installation practical and reducing the need for additional accessories. In Autonomous Mode, the reader performs automatic readings and can send data through keyboard emulation or serial communication. In Transparent Mode, it can be controlled by software using the Mercury API, enabling custom solutions with tag reading and writing capabilities.
- Compact reader for desktop or wall-mounted applications;
- Ideal for self-checkout, POS, laundry systems, tag reading/writing stations, product control, industrial equipment, and small RFID portals;

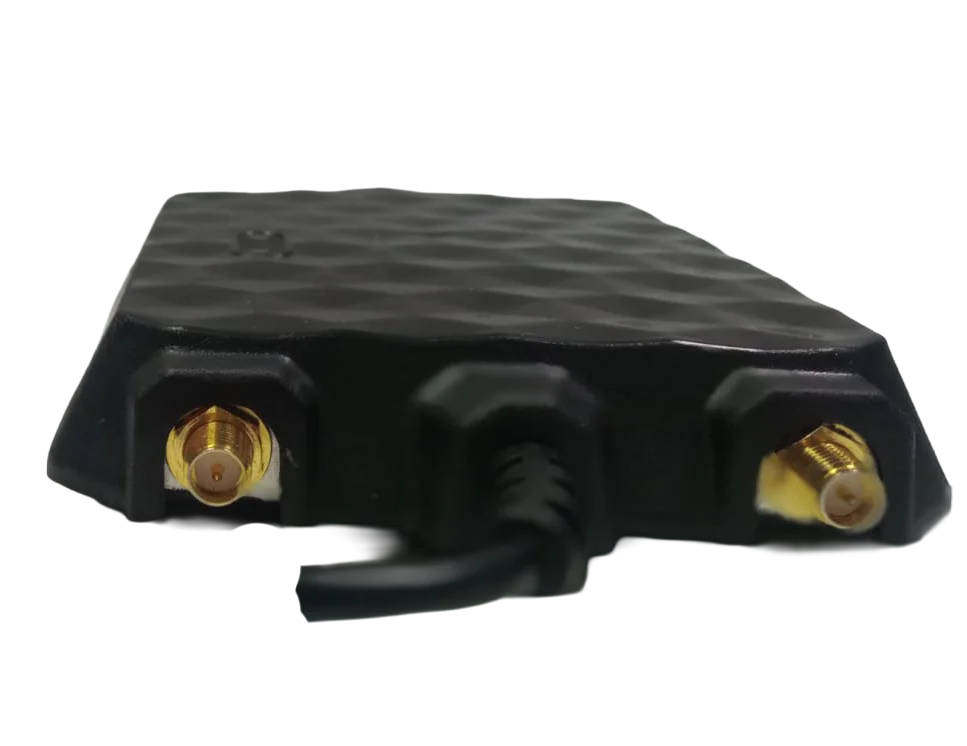

- Equipped with two RF ports for external antennas, offering flexibility for different reading scenarios;
- Communication and power supply via USB, with no external power supply required;
- Autonomous and Transparent operating modes, enabling Plug & Play use or software integration;
- Support for keyboard emulation and USB Serial communication;
- Reading distance from 3 to 8 meters, depending on the antenna, RF cable, tag, usage mode, and environment;
- In Transparent Mode, enables tag reading and writing through the Mercury API.
Physical Characteristics
| Fixation | Table/desk stand or wall mount |
| Dimensions | 130 x 90 x 17 mm |
| Protection | Indoor use |
| Installation | Table/desk stand or wall mount |
Technical Details
| Supported Protocols | ISO 18000-6C (EPC Gen2) | ISO 18000-63 (EPC Gen2 V2) (Transparent Mode) |
| Data Communication | USB HID Keyboard | USB Serial CDC |
| Max Read Distance | Depending on the configuration, it can vary from 3 to 8 meters |
| Operating Frequency | UHF (902 to 928 MHz) |
| Connector | Fixed USB cable: 2 m / 6.5 ft |
| Connections | RP-SMA female connector with male center pin |
| Programming | Autonomous Mode | Transparent Mode |
| Regulations | 915-928 MHz FCC | (USA) 902-928 MHz |
| ANATEL | 06927-25-08437 |
| Power | 5 VDC ± 1% |
| Consumption | 3.8 W @ 5 VDC, with a reading power of 27 dBm |
| Antenna Connector | 2x RP SMA Jack male pin |
| Operating Temperature | −10 °C a +55 °C (14 °F a 131 °F) |
| Storage Temperature | −10 °C a +60 °C (14 °F a 140 °F) |
| Humidity | 95% |
Datasheets
RELATED PRODUCTS
AcuPad 50 UHF reader
The AcuPad-50 is a compact, high-performance UHF RFID reader with two SMA outputs for external antennas, suitable for applications requiring fast reading, installation flexibility, and easy integration.

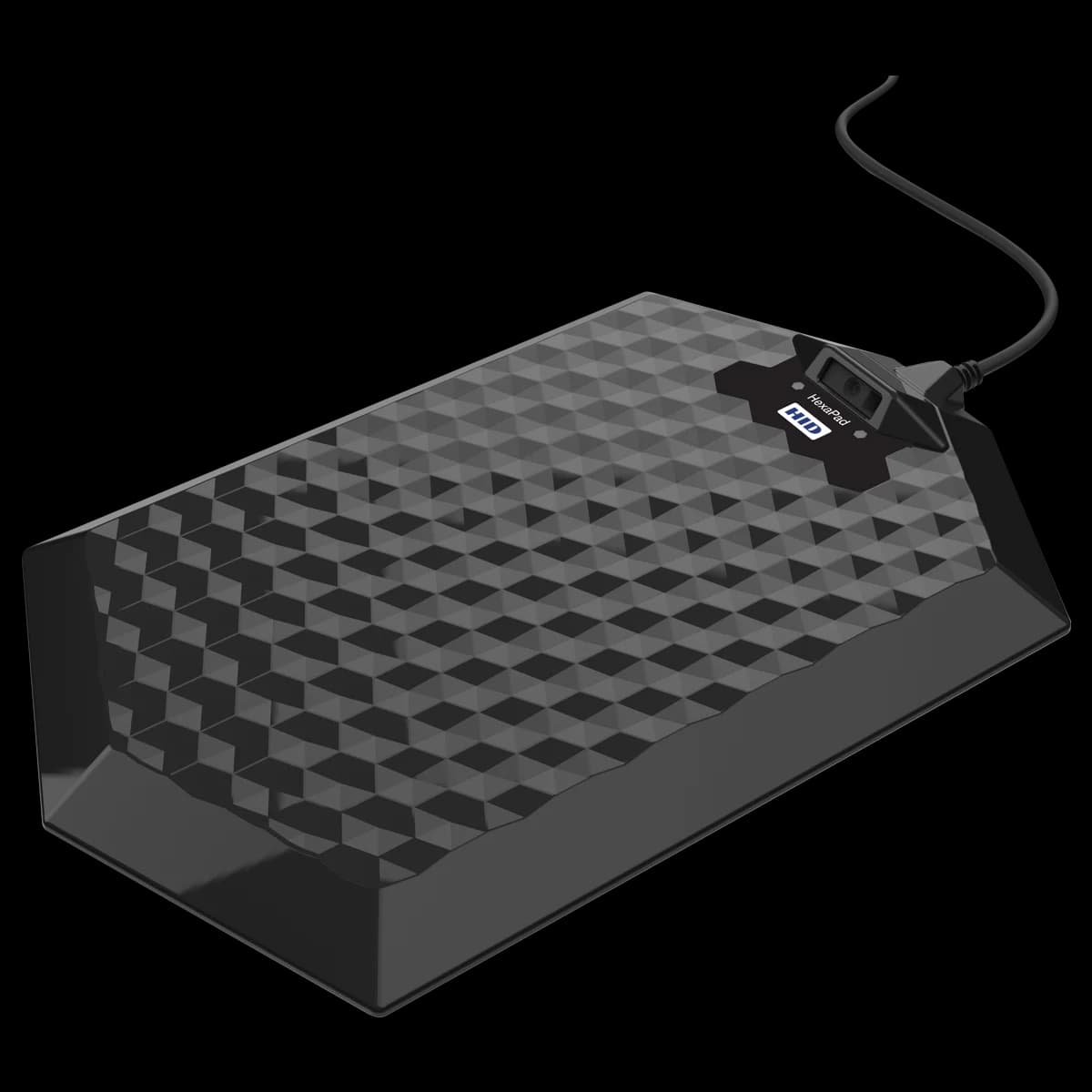

HexaPad-10 Barcode
The UHF HexaPad-10 Barcode reader is a tabletop reader with UHF RFID technology developed with a Near Field antenna with a restricted reading field.

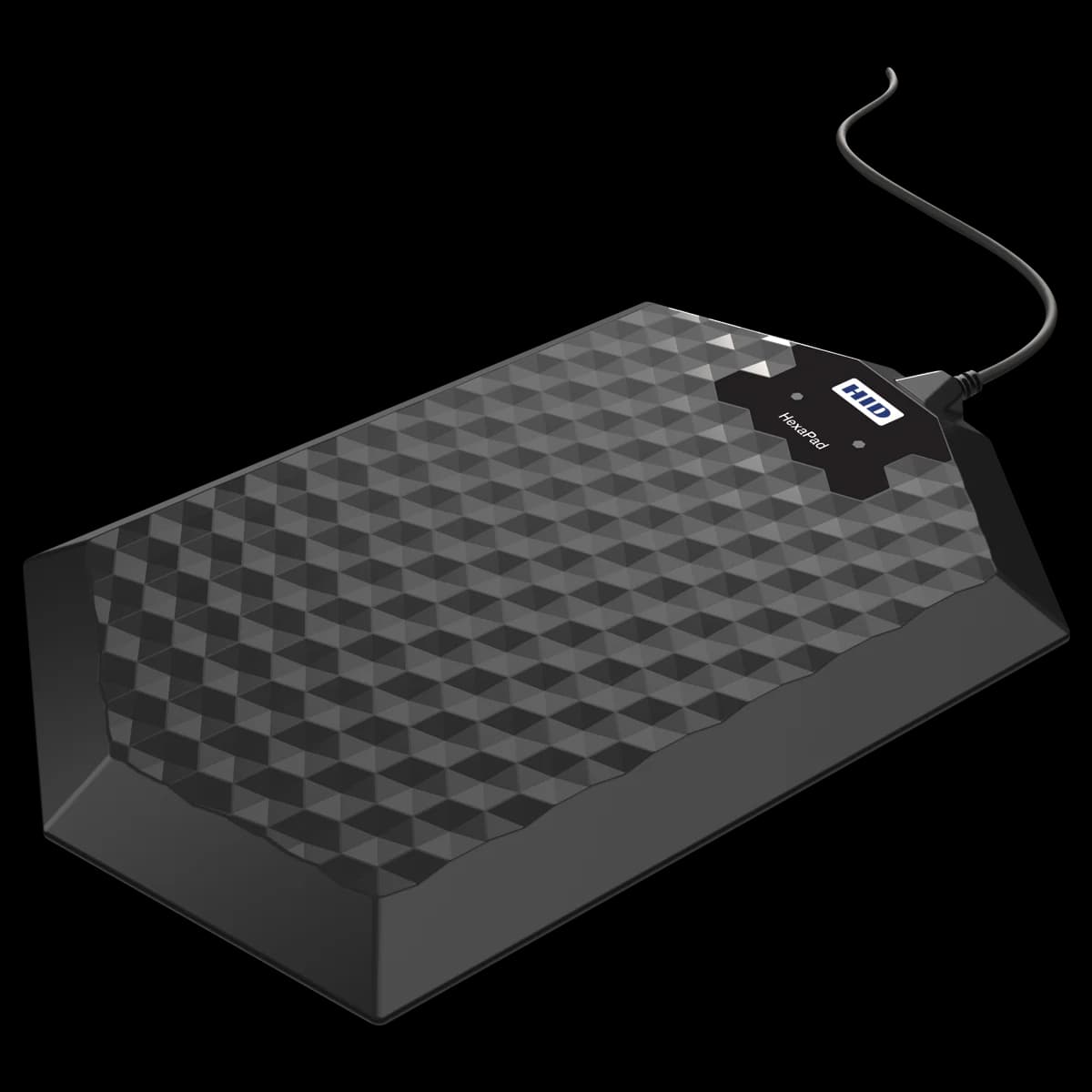

HexaPad-10
